Standard outdoor dot pixel lighting (dot light) system, designed for the realization of sel fluminous lighting effects for building facades and structural surface. It using different installation accessories to bring out the ideal combination of curtain well structures. Optical design, special asymmetric light distribution design not only enure the brightness of the surface, but also reduce the light pollution by decrease the light output above horizontal direction, which economically saves energy by improving the utilization of over

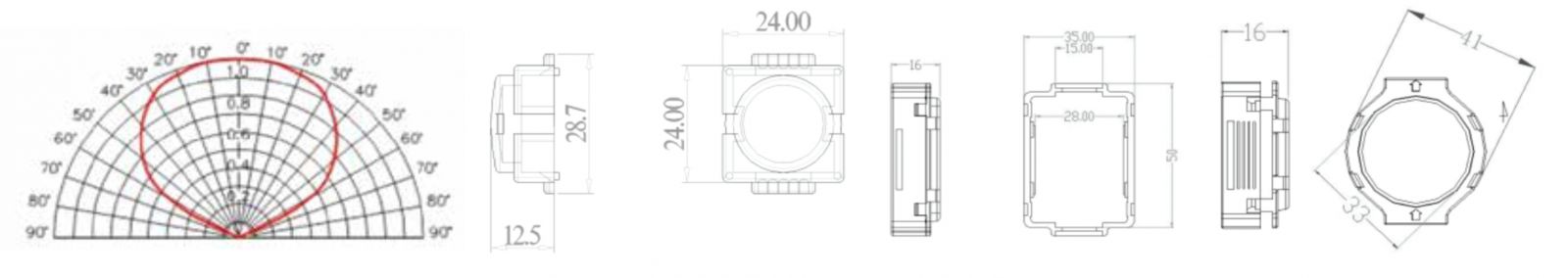

Mechanical Features:
Product Code |
Size (mm) (Ø x H / L x B x H) |
Lumi Pint-01 | 20 x 12.5 |
Lumi Pint-02 | 35 x 45 x 16 |
Lumi Pint-03 | 40 x 16 |
Input Voltage | : | 5 V DC / 24 V DC |
Chips | : | SMD5050 / SMT5050 LED |
Wattage | : | 0.5W / 1.44W |
Colour Temperatures | : | RGBW |
Control | : | On-off / DMX512 |
Life Span | : | 50,000 Hours |
Ingress Protection | : | IP65 |
Working Temperature | : | -20oC to +55oC |
Weight | : | 15G / 39G / 35G |
Beam Angle | : | 120o / 160o |
