FEATURES:
- Mounting: Ground
- Housing: Corrison resistant aluminium
- Triple layered opal glass, Satin finish
- Diffuser Mounting - bayonet lock
- Best in class power LEDs
- Inbuilt electronic driver
- Standard Body Colour : Black. Other options available

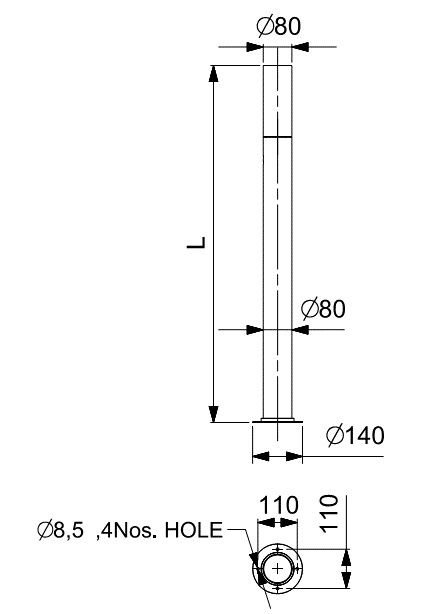

Mechanical Features:
|
Product Code |
Size(mm) (Ø H) |
| LSP - 010 | 80 X 600, 800, 1000 |
SPECIFICATIONS:
| Input Voltage | : | 170 V - 270 V AC |
| Frequency | : | 50/60 Hz |
| Power Factor @230 VAC | : | > 0.9 |
| Colour Temperatures | : | 3000 K / 4000 K / 6000 K |
| Colour Rendering Index | : | > 75 |
| Lumen Efficacy | : | > 120 Lumens per Watt |
| Operating Temperature | : | -20° C to 50° C |
| Ingress Protection | : | IP65 / IP66 |
| Life Span | : | 75,000 Hours |
| Safety Standard | : | IEC 60598 |
| EMC/ EMI Standard | : | IEC61547 / EN55015 |
| Harmonics | : | IEC 61000-3-2 |
| Product Code | Input Power | System Lumens |
| LSP - 010 | 10 Watts | 1200 |
PHOTOMETRIC DATA:
Polar candela distribution
